Manufacturer since 2008 · CE · RoHS · ISO9001

Copper Lugs · Cold Shrink · Heat Shrink — One Source, Full Range

Yusen Electric Technology is a professional manufacturer of electrical connection products — from 0.5mm² signal lugs to 300mm² power lugs, 1–35kV silicone cold-shrink cable accessories, plus a full heat-shrink range from thin-wall tubing to adhesive-lined dual-wall grades. Built for power, rail, petrochemical and new-energy projects worldwide.

Explore Products Get a Quote
Copper Lug Terminals 0.5–300mm²
Cold-Shrink Accessories 1–35kV
Heat-Shrink Series Ø0.6–150mm
Dual-Wall Adhesive-Lined Tubing IP68
17+
Years of manufacturing
300mm²
Max cable cross-section
35kV
Max voltage class
40+
Countries served
Product Line 01

Copper Lug Terminals

T2-grade copper, cold-pressed; tin-plating optional. Full range from 0.5mm² signal wires to 300mm² power cables. OT tubular, pin, fork, ring and cold-press connector types.

OT-series T2 copper tube lugs with palm bolt holes, 1.5mm2 to 300mm2
Cable Crimp barrel M Palm + bolt hole L (total length) W OT-type copper lug · cross-section
Product photo · switch to technical drawing

Copper Lugs · Series OT/IT/GT

T2 Copper, Tin-Plating Optional

Cold-pressed from T2-grade copper (per national standard, mill certificates available), optionally tin-plated for corrosion resistance. Seamless barrel for reliable crimping; palm drilled to standard bolt sizes. Suitable for power distribution, control panels, and equipment wiring.

OT Tubular Pin Terminals Fork / Ring Cold-Press Connectors
  • T2-grade copper, mill certificates available, low contact resistance
  • Seamless barrel, uniform crimp, no cracking
  • Tin-plated option for humid / corrosive environments
  • Palm hole matches M4–M20 standard bolts
  • CE, RoHS compliant; type-test reports available
OT-series copper lug specifications (representative models)
Model Cross-section Bolt Barrel L (mm) Palm W (mm) Rated current
OT-1.51.5mm²M4146.517.5A
OT-2.52.5mm²M5167.024A
OT-44mm²M5188.032A
OT-66mm²M6209.041A
OT-1010mm²M8241157A
OT-1616mm²M8261376A
OT-2525mm²M83015100A
OT-3535mm²M103417125A
OT-5050mm²M103819150A
OT-7070mm²M124222180A
OT-9595mm²M124825232A
OT-120120mm²M125228265A
OT-150150mm²M165630300A
OT-240240mm²M166635415A
OT-300300mm²M207240480A
Product Line 02

Cable Cold-Shrink Accessories

High-elasticity silicone rubber, pre-expanded on a removable support core. Pull the core and the tube shrinks — no heat, no flame, safe for flame-proof zones. Terminations, joints, branch taps and tubes for 1–35kV cables.

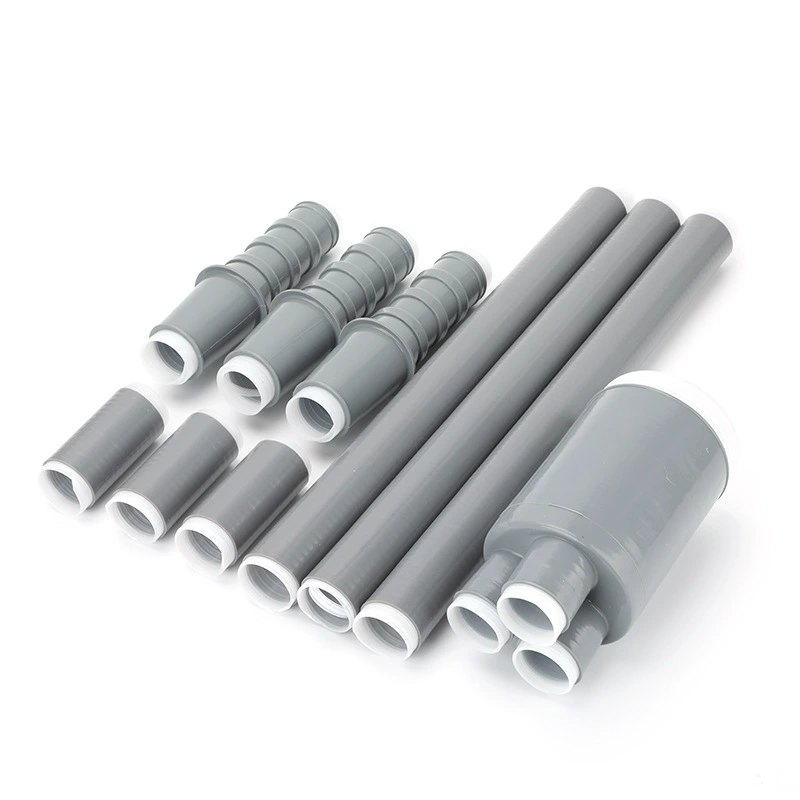

Cold-shrink cable joint kit: silicone tubes, joint bodies and installation accessories

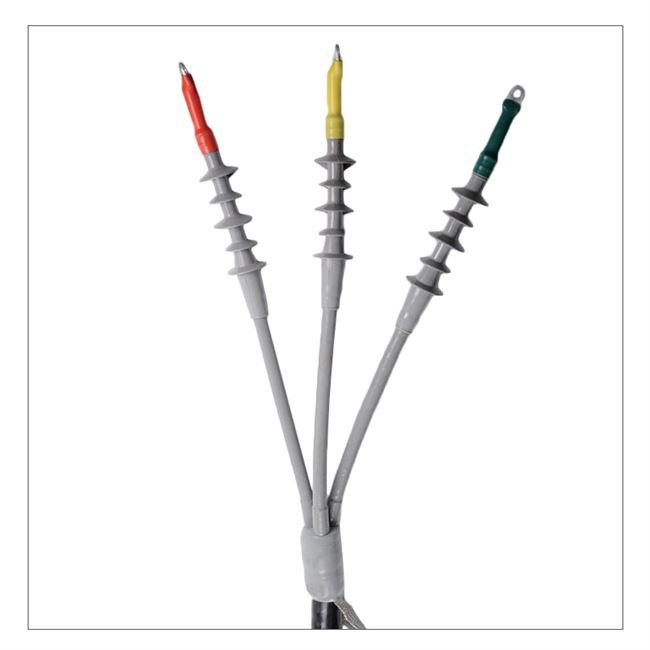

35kV three-core cold-shrink cable termination with colour-coded phase sleeves
Cold-shrink mechanism — pull core to shrink Pre-expanded tube + support core pull Sealed onto cable
Product photos · switch to technical drawing

Cold-Shrink · Series LST/LSJ/LSB

Silicone, Flame-Free Install

Pre-expanded high-elasticity silicone on a spiral support core. Install by pulling out the core — the tube retracts and seals tightly without any heat source. Ideal for flame-proof and confined spaces where open flame is prohibited.

Cold Termination Cold Joint Cold Branch (T) Silicone Tubes
  • No torch / heat gun — safe for petrochemical flame-proof zones
  • Permanent elastic, tracks cable thermal expansion & bending
  • 5-layer joint structure restores insulation, screen & sheath
  • Reliable moisture sealing (per type-test reports), suitable for outdoor & direct-buried use; UV-resistant silicone
  • One-piece pre-expanded — install in minutes, not hours
Cold-shrink accessory selection (representative models)
Model Type Voltage Cable cross-sec Main insulation Ø Application
LST-10/25Termination10kV25–50mm²14–22mmRMU / transformer
LST-10/95Termination10kV70–120mm²20–30mmSwitchgear incomer
LST-35/240Termination35kV185–400mm²30–45mmSubstation / transmission
LSJ-10/70Joint10kV50–95mm²18–28mmLine extension / repair
LSJ-35/300Joint35kV240–400mm²35–48mmTransmission splice
LSB-10/50TBranch (T)10kVMain 95 / Tap 5020–30mmUrban distribution tap
LSG-30/8Tube≤1kV16–35mm²8–16mmRepair / seal / protect
Product Line 03

Heat-Shrink Series

Radiation-crosslinked polymer tubing from thin-wall insulation to heavy-wall waterproofing, busbar covers and stress-control tubes. Shrink ratio 2:1 to 4:1, continuous working temperature -55°C to 135°C.

Adhesive-lined waterproof grades → Product Line 04 Dual-Wall Heat-Shrink Tubing

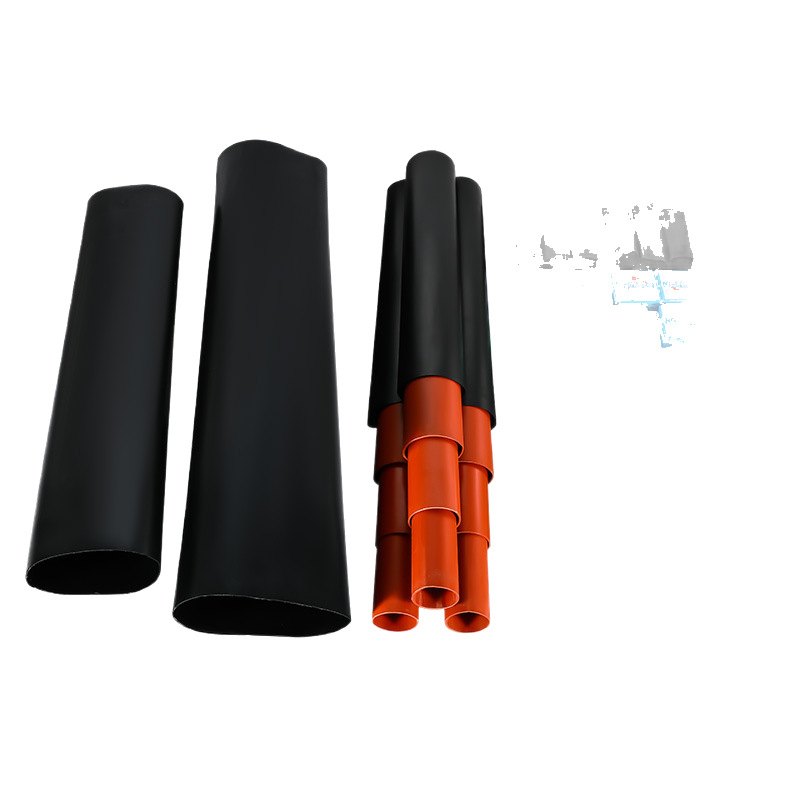

Heat-shrink tubing in black and red, thin-wall and heavy-wall grades

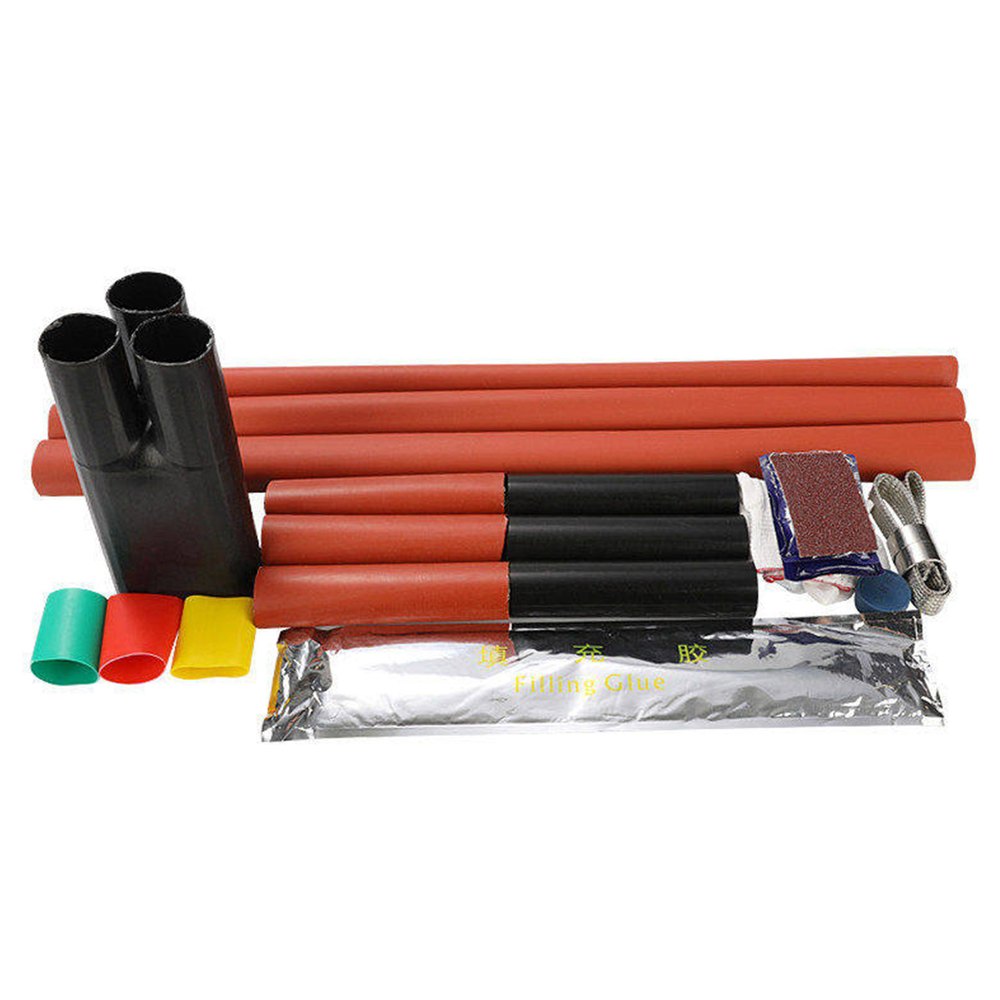

Heat-shrink tubing assortment in black, green, blue, yellow and red for phase identification
Heat-shrink principle — before & after Before heating gap After heating tight seal, thicker wall
Product photos · switch to technical drawing

Heat-Shrink · Series RS/RZM/RSB

Crosslinked Polymer, 2:1–4:1 Shrink

Radiation-crosslinked PE/PTFE-based tubing that shrinks tightly onto any substrate when heated. Thin-wall for insulation and ID marking, medium/heavy-wall with hot-melt lining for enhanced moisture sealing, plus busbar covers and stress-control tubes.

Thin-wall tubing Medium/heavy-wall Busbar covers Stress-control
  • Shrink ratio 2:1 / 3:1 / 4:1, fits variable substrate Ø
  • Hot-melt lining option — enhanced water resistance for damp & buried environments
  • Working temp -55°C to 135°C, flame-retardant grades
  • Busbar cover withstand ≥12kV, phase-color identification
  • Stress-control tube smooths electric field at termination
Heat-shrink tubing specifications (representative models)
Model Type Shrink ratio ID range (mm) Wall after shrink Typical use
RS-Φ3Thin-wall2:11.5–3.00.4mmWire insulation
RS-Φ10Thin-wall2:15.0–10.00.5mmHarness bundling
RZM-30Heavy-wall3:115–302.5mmCable joint moisture sealing
RZM-80Heavy-wall3:140–804.0mmDirect-buried splice
RSB-40BBusbar cover2:120–401.2mmCu-bar insulation
RSB-100BBusbar cover2:150–1001.5mmSwitchgear busbar
RST-25Stress-control3:112–251.0mmCable termination field
Product Line 04

Dual-Wall Heat-Shrink Tubing

Two walls in one tube: a flame-retardant crosslinked polyolefin outer wall and a hot-melt adhesive inner wall. On heating, the outer wall shrinks tight while the inner wall melts and flows into every void — a waterproof IP68, corrosion-resistant and strain-relieved seal for spliced, terminated and direct-buried cables.

← Back to Product Line 03 Heat-Shrink Series (thin-wall, busbar, stress-control)

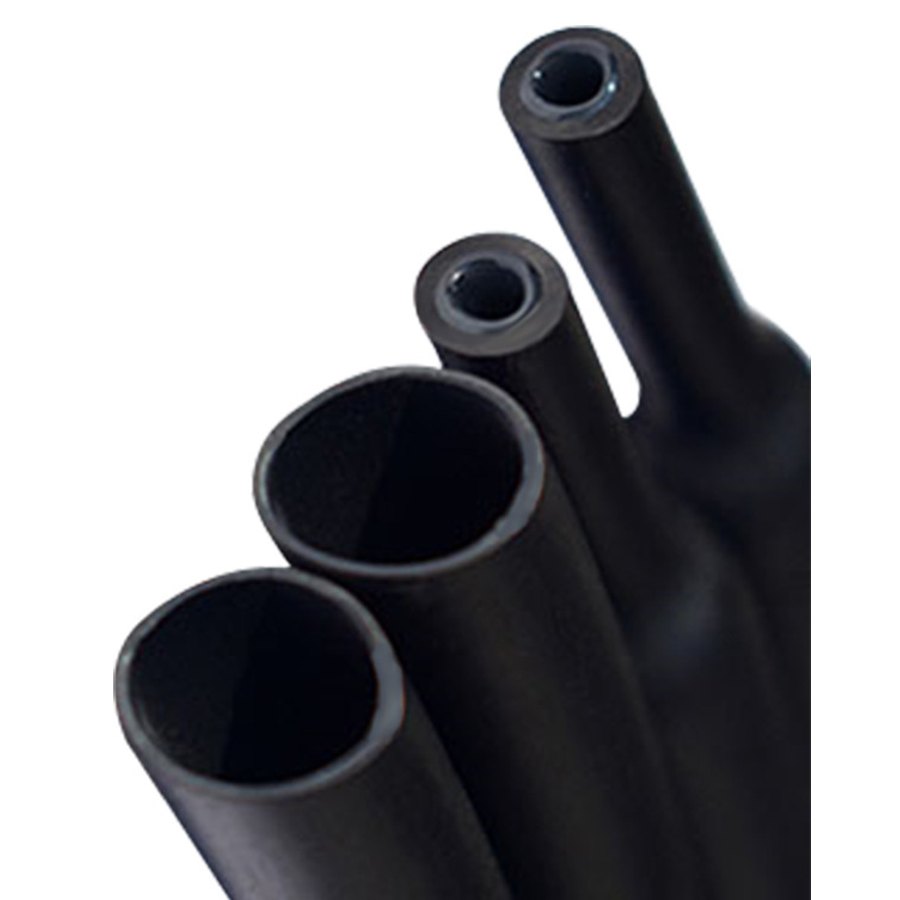

Dual-wall heat-shrink tubing, black heavy-wall, cut ends showing the inner adhesive layer

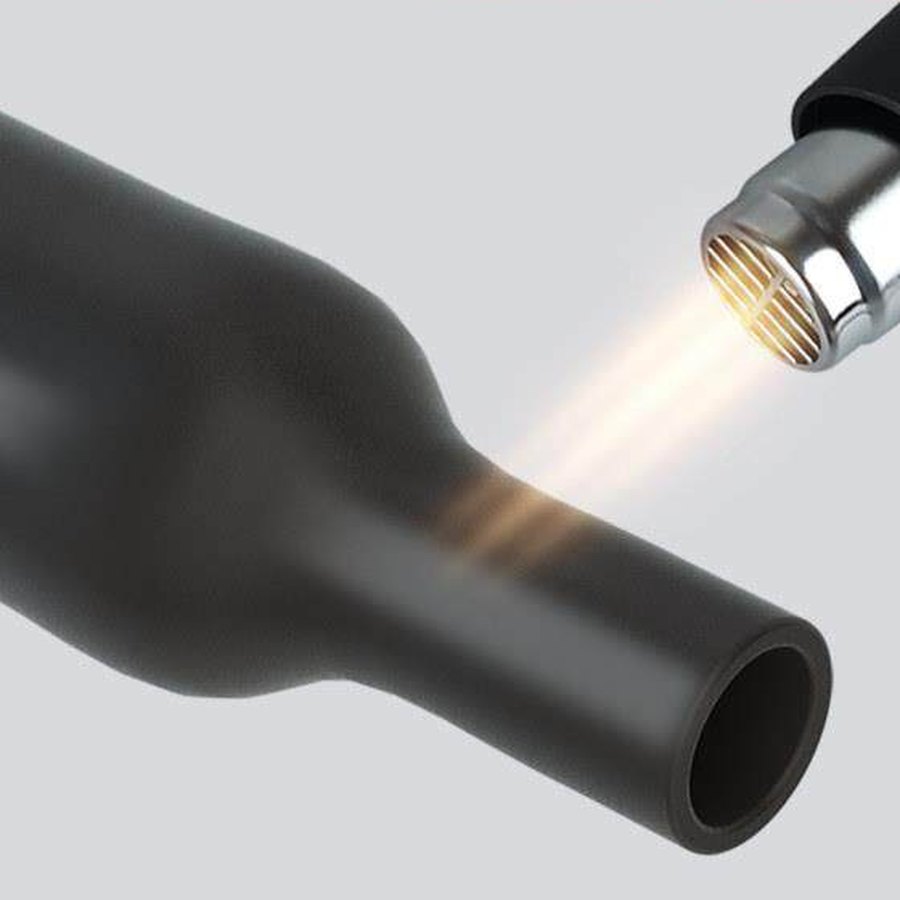

Dual-wall heat-shrink tubing recovering tightly over a cable conductor with a hot-air gun

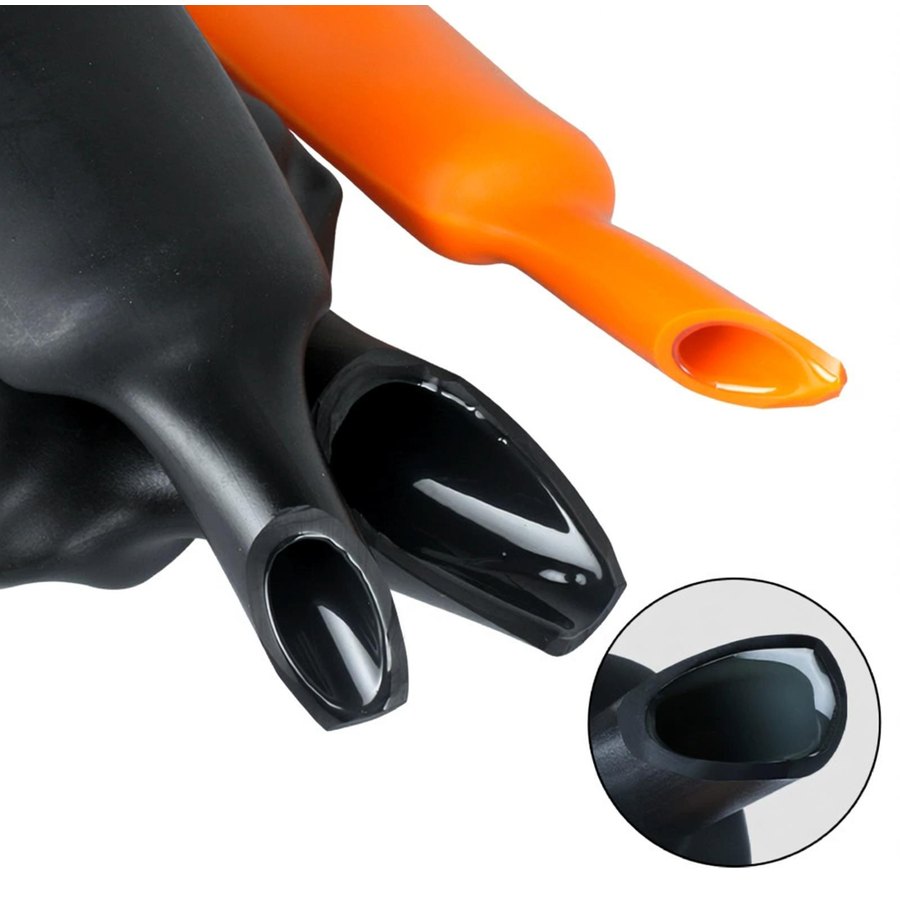

Dual-wall heat-shrink tubing in black and orange, recovered neck over a cable with cut-end detail
Dual-wall (adhesive-lined) — how it seals Cut end — 2-layer wall conductor dual wall After heating — sealed adhesive flows out — watertight, strain-relieved Outer wall — flame-retardant XLPO Inner wall — hot-melt adhesive Conductor / splice Cable insulation
Product photos · switch to technical drawing

Dual-Wall · Series DW / DWR

Adhesive-Lined · 3:1–4:1 · IP68 Sealed

Heavy-wall tubing co-extruded in two layers. The 3:1 and 4:1 shrink ratios let one size cover a wide cable range, while the hot-melt lining keeps moisture out of the joint under vibration, thermal cycling and direct burial. Supplied in black for 1–10kV and red for 1kV phase identification.

3:1 shrink 4:1 shrink Adhesive-lined Black 1–10kV Red / orange Direct burial
  • Co-extruded two-layer wall: outer flame-retardant XLPO + inner hot-melt adhesive
  • On shrink the adhesive fills every void — IP68 watertight, corrosion-proof, strain relief
  • 3:1 / 4:1 ratio — one size covers several cable ranges, fewer SKUs to stock
  • Wall 2.0–3.5mm after shrink — black, red and orange grades, phase marking at 1kV up to 10kV
  • Withstands -55°C to 110°C, UV and soil contact — suited to direct burial and submersible cable
  • Flame-retardant to V-0, RoHS compliant, shrink temperature 120–140°C
Dual-wall (adhesive-lined) heat-shrink tubing — representative models
Model Grade Shrink ratio ID range (mm) Wall after shrink Typical use
DW-12/4Black 1kV3:14.0–12.02.0mmControl & instrument wire splice
DW-19/6Black 1kV3:16.0–19.02.2mmLV cable splice, lug insulation
DWR-19/6Red 1kV3:16.0–19.02.2mmPhase colour marking, busbar & lug cover
DW-33/11Black 1kV3:111.0–33.02.5mm25mm² 4-core LV splice
DW-55/19Black 10kV3:119.0–55.03.0mm95mm² cable splice
DW-115/41Black 10kV3:141.0–115.03.5mm300mm² direct-buried joint
DW-25/6Black 1kV4:16.0–25.02.3mmLarge-to-small transition, 25→6mm
Why Choose Us

Built on Material, Proven by Test

From raw copper to finished accessories, every step is controlled in-house. We do not just assemble — we manufacture, test and certify.

T2-Grade Copper

T2-grade copper per national standard; mill certificates provided per batch. Low contact resistance, stable over decades.

Cold-Shrink Patented

Self-developed silicone formulation and pre-expansion process. Consistent retraction force, 20-year elasticity.

Type-Test Reports

Each voltage class backed by partial discharge, AC withstand and impulse tests per IEC / GB standards.

Full Spec Range

0.5–300mm² lugs, 1–35kV cold-shrink, Ø0.6–150mm heat-shrink, dual-wall IP68 tubing — one supplier for the whole project.

Custom OEM / ODM

Custom barrel lengths, palm shapes, branding and packaging. Low MOQ, fast sampling, your logo on product.

Fast Global Delivery

Stocked standard specs ship in 3 days; export to 40+ countries with full documents and bilingual labels.

Where We Serve

Industries Powered by Yusen

From urban substations to offshore wind farms — our products connect power wherever it flows.

⚡

Power T&D

Substations, switchgear, transformer terminations 10–35kV

🚄

Rail Transit

Vibration-proof lugs & cold-shrink for traction and station wiring

🛢

Petrochemical

Flame-proof zone — cold-shrink only, no open flame

🌬

Wind & Solar

Tower wiring, inverter DC links, UV-resistant heat-shrink

🏭

Industrial Auto.

Control panels, PLC cabinets, signal and power lugs

🏗

Building Electrical

Distribution boxes, risers, meter cabinets — full lug range

Let's Build Your Connection

Send your cable cross-section, voltage class and quantity. We reply within 24 hours with spec sheets, pricing and lead time. WhatsApp or email — your choice.
